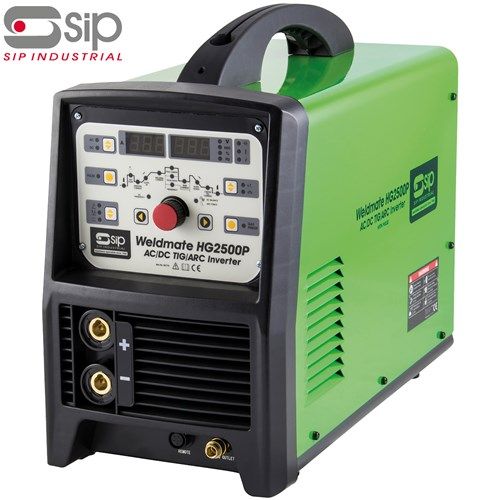

Weldmate HG2500P AC/DC TIG/ARC with Pulse

Name: Weldmate HG2500P AC/DC TIG/ARC with Pulse
Brand: SIP Industrial
SKU: 05770
Availability: InStock

£906.24 Ex. VAT(£1,087.49 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The SIP HG2500P TIG/ARC is a dual-function inverter with an integrated 9-stage parameter adjustment program. With added IGBT and Pulse technologies, it is reliable in all applications.

230v (16A) input supply
5A - 200A DC TIG output current
10A - 200A AC TIG output current
5A - 170A ARC/MMA output current
1.6mm - 4mm ARC/MMA electrode diameter
HF TIG/Lift ARC & TIG, MMA ARC processes
Latest IGBT inverter technology platform
Super lightweight and generator friendly
9-stage parameter adjustment including
slope-up/slope down, pre/post gas, AC
balance and reliable frequency control
Optional foot pedal accessory to buy
Integrated variable TIG pulse facility
Easy-to-use control panels

Technical Description:


ITEM NO.	05770
Input Supply	230v (16A)
Output Current	10A - 200A (AC TIG) 5A - 200A (DC TIG) 5A - 170A (ARC)
Duty Cycle	200A @ 60% (TIG) 130A @ 60% (ARC)
Pulse Facility	Yes
Foot Pedal	Yes
Insulation	Class H
Protection	IP21S
Net Weight	22.50kg
Gross Weight	25.00kg
Packaged Dimensions	460(H) x 655(W) x 325mm(D)
